Validation & V&V

🔬 Validation & Verification

DESK includes:

  • Stability checker (utilization ρ < 1)
  • Little’s Law analysis
  • Resource consistency validation
  • Automated warm-up suggestion
  • Stability Analysis: Preliminary capacity analysis on utilization (ρ < 1)
  • Little’s Law verification: Automatic analysis on stability (L = λW). The average number of items in the system (L) is the average arrival rate (λ) multiplied by the average time an item spends in the system (W)

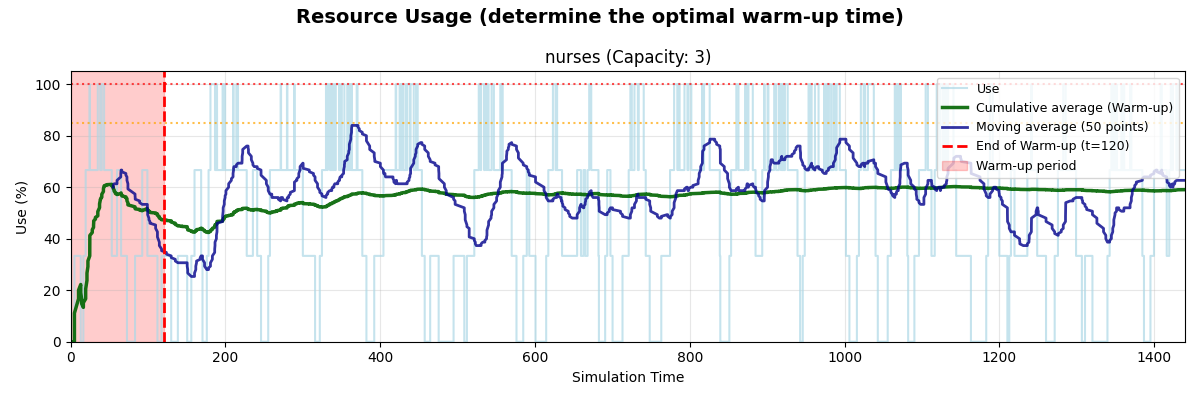

  • Warm-Up Analysis: Automated transient detection

WarmUp

WIP

Visualization & Reporting

  • Real-Time Visualization: Process animation during simulation

Visualization

  • Statistical Plots:
  • Resource utilization over time
  • WIP evolution
  • System time distributions

  • Activity-level metrics

  • BupaR Integration: Process mining and animation files for ProcessAnimate in R (processanimateR).

The resulting event-log .csv file is stored in result/ folder, e.g., hospital_event_log.csv file, to produce the animation below. The R code of the example (hospital_bupar.R) is available in r_animation/ folder.

ProcessAnimateR
